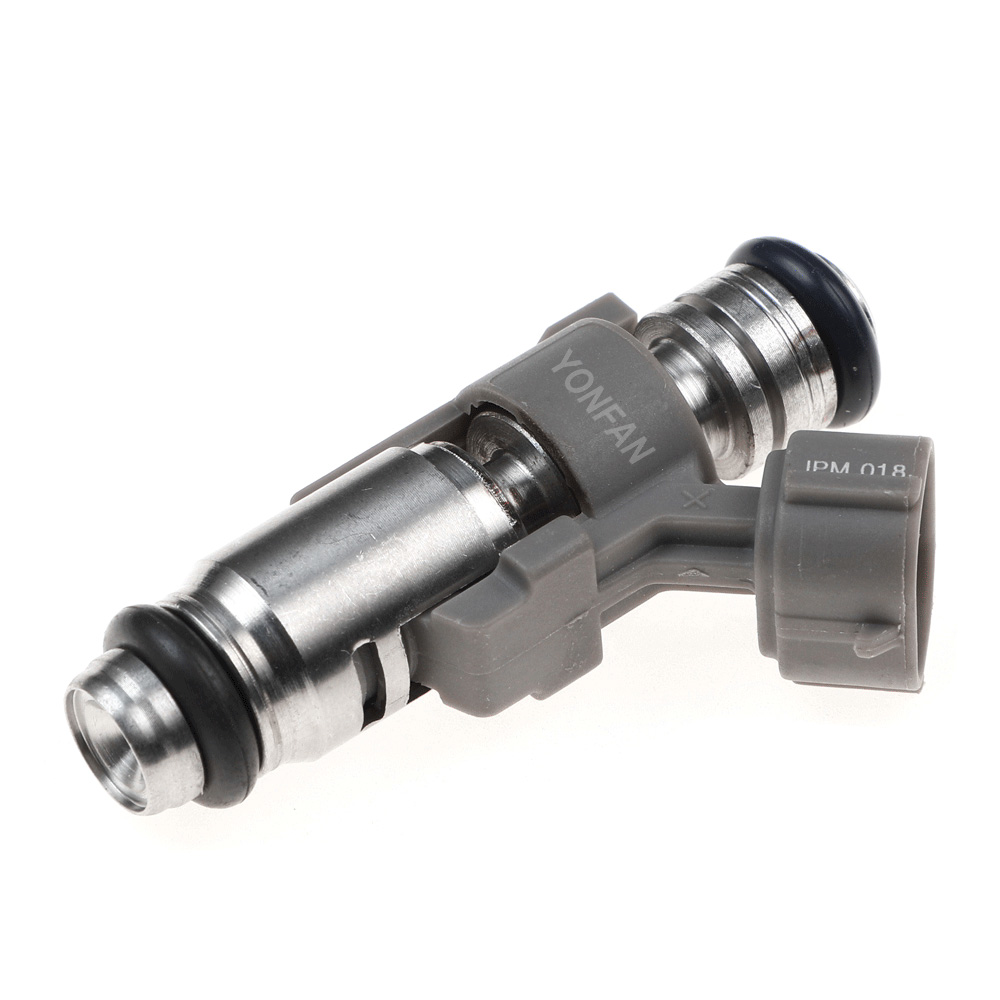

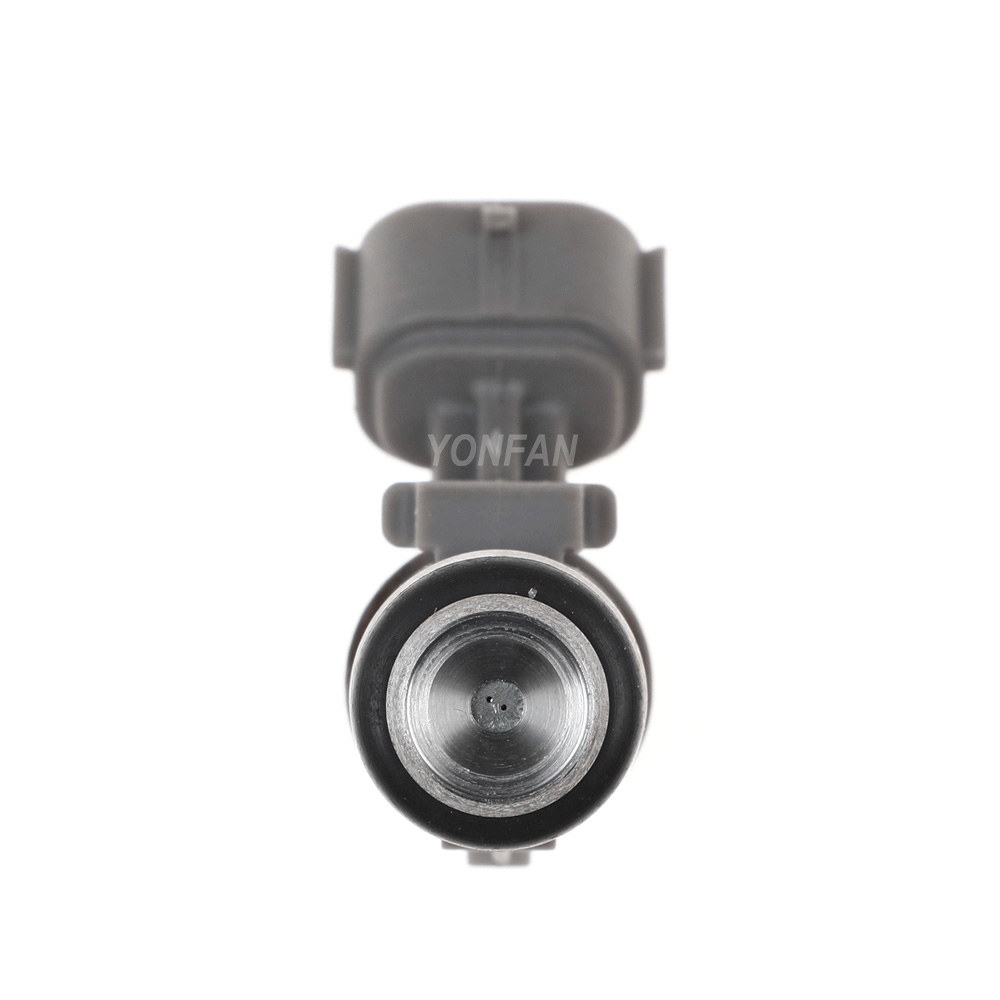

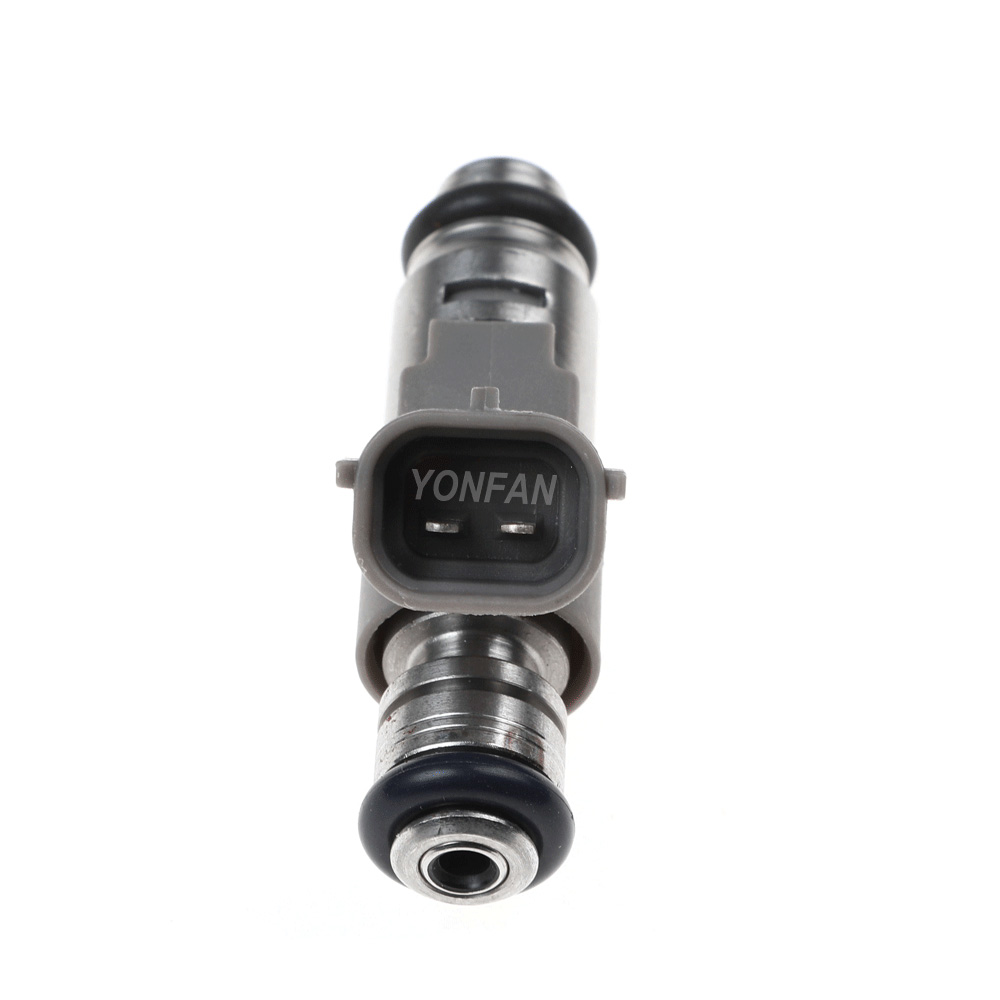

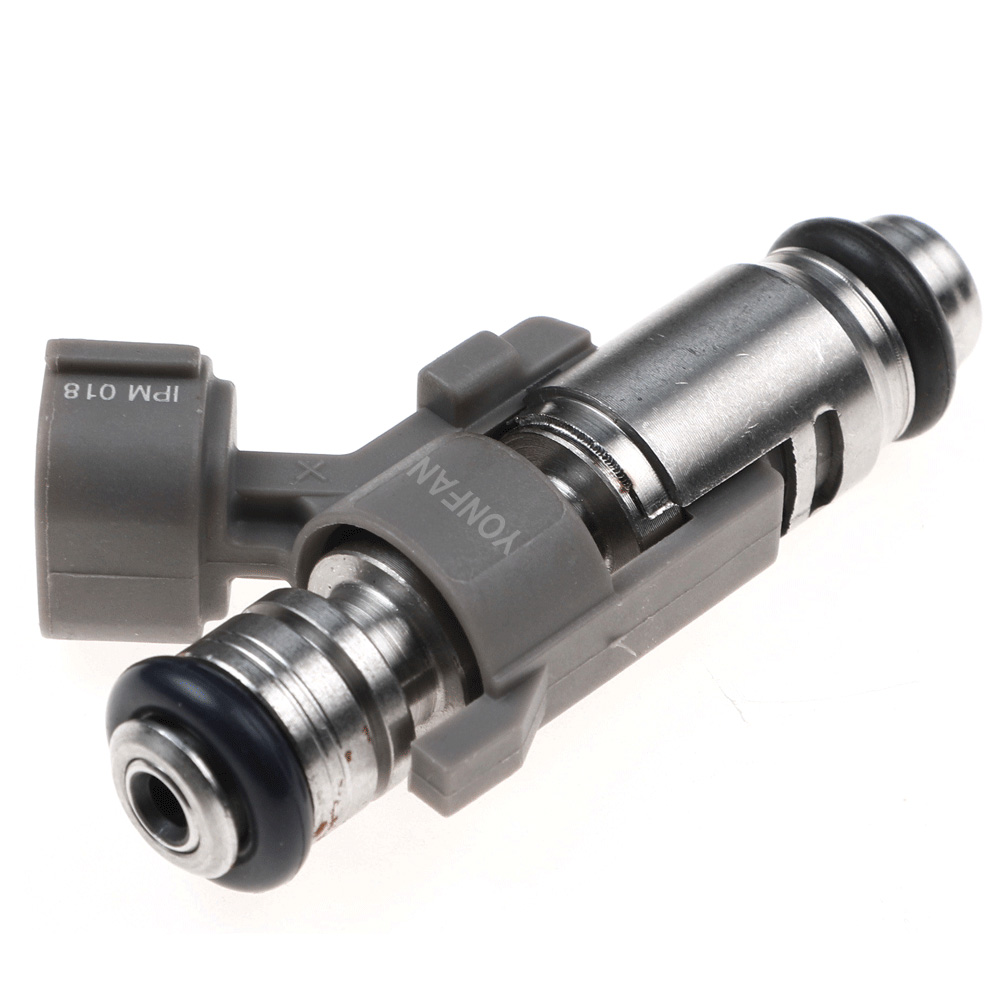

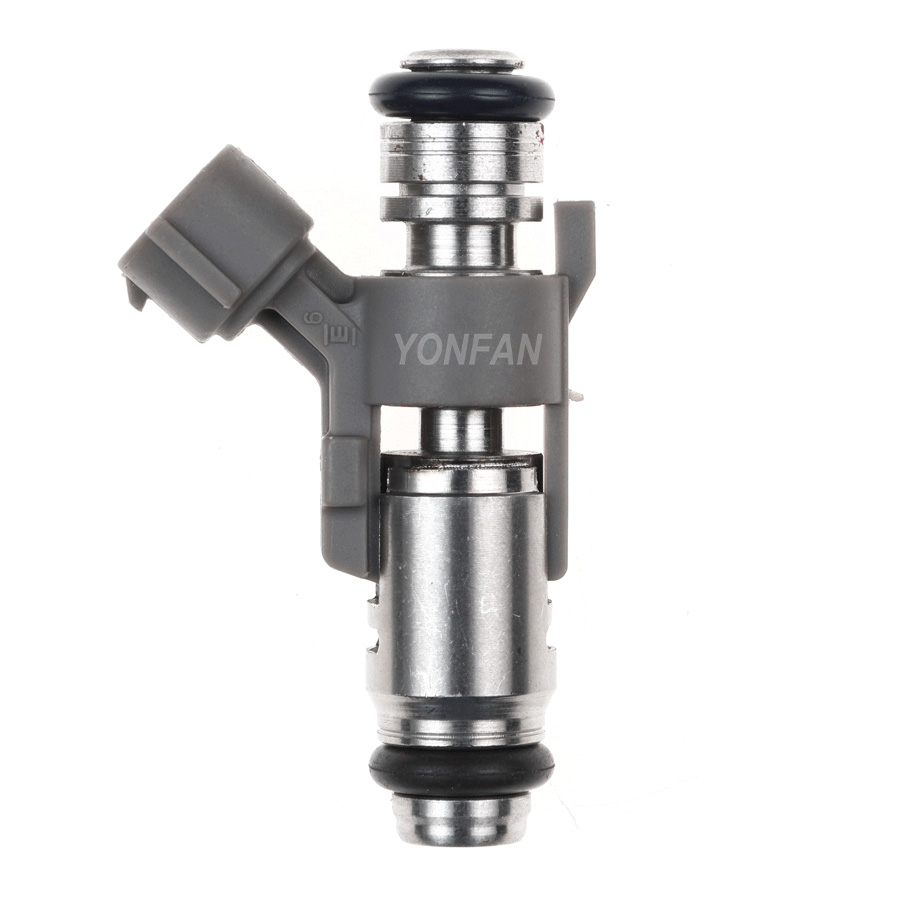

Fuel Injector

IPM018

Model Number: IPM 018

OE Number: S11-BJ1121011, 1984F4

Application: Chery QQ Peugeot 207 307 Citroen C3 C4

Specification:
Flow Rate: 100cc/min @3Bar
Coil Resistance: 14.5Ω
Operating Voltage: 12V
Operating Temperature: -40°C~+125°C

Part Number:

Magneti Marelli	IPM018
Magneti Marelli	805001754001
Peugeot	1984F4
Citroen	9648148580
Chery	S11-BJ1121011

Application:

Model	Produced	KW	HP	CCM
Peugeot 207 (WA_, WC_) 1.4	2006-02 - ...	53	72	1360
Peugeot 207 (WA_, WC_) 1.4 16V	2006-02 - ...	65	88	1360
Peugeot 307 (3A/C) 1.4	2000-08 - ...	55	75	1360
Peugeot 307 (3A/C) 1.4 16V	2003-11 - ...	65	88	1360
Peugeot 307 Break (3E) 1.4 16V	2003-11 - ...	65	88	1360
Peugeot 307 SW (3H) 1.4 16V	2003-11 - ...	65	88	1360
Citroen C3 (FC_) 1.4 16V	2003-12 - ...	65	88	1360
Citroen C3 (FC_) 1.4 i Bivalent	2002-02 - ...	54	73	1360
Citroen C3 Pluriel (HB_) 1.4	2003-05 - ...	54	73	1360
Citroen C4 (LC_) 1.4 16V	2004-11 - 2011-07	65	88	1360
Citroen C4 Coupe (LA_) 1.4 16V	2004-11 - 2011-07	65	88	1360
