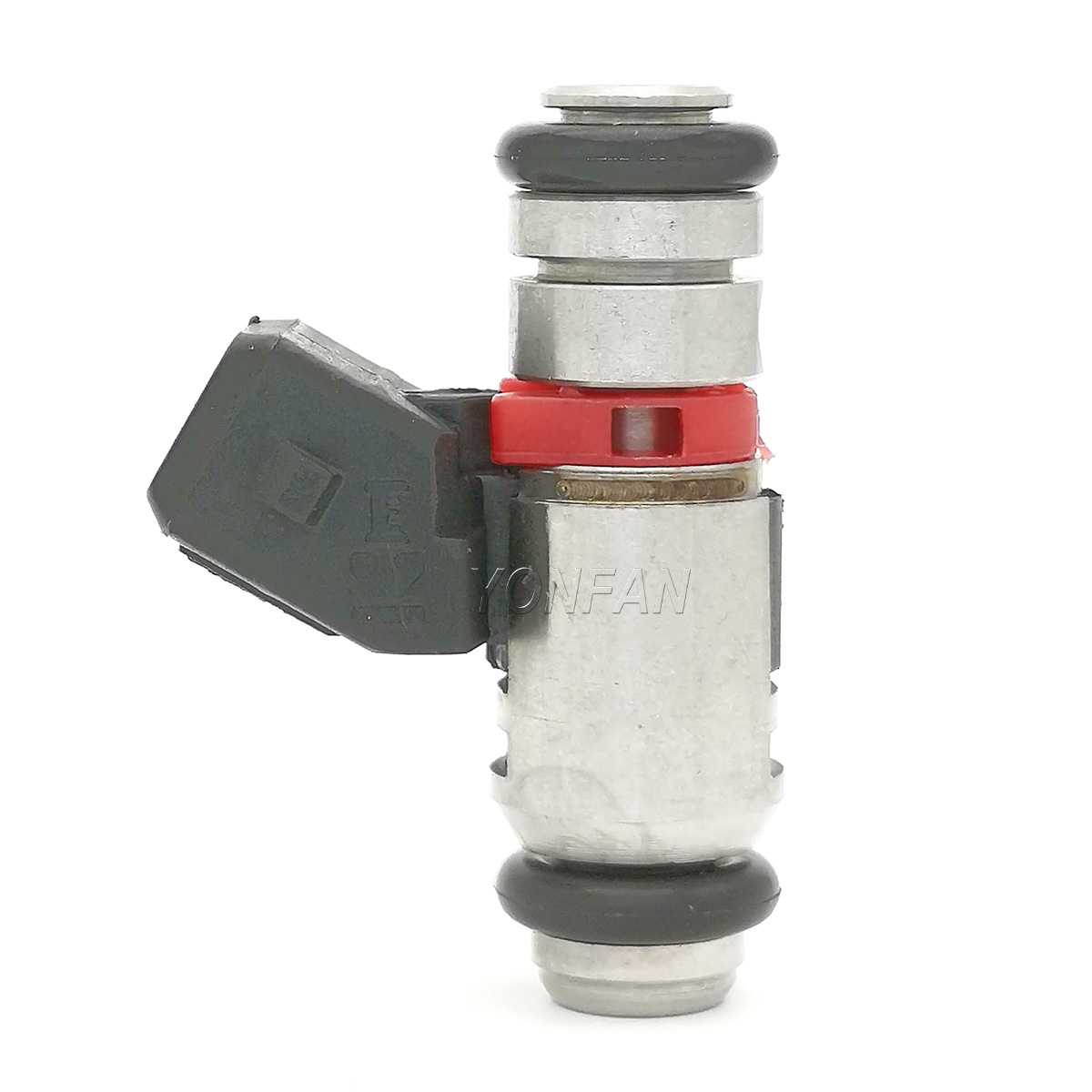

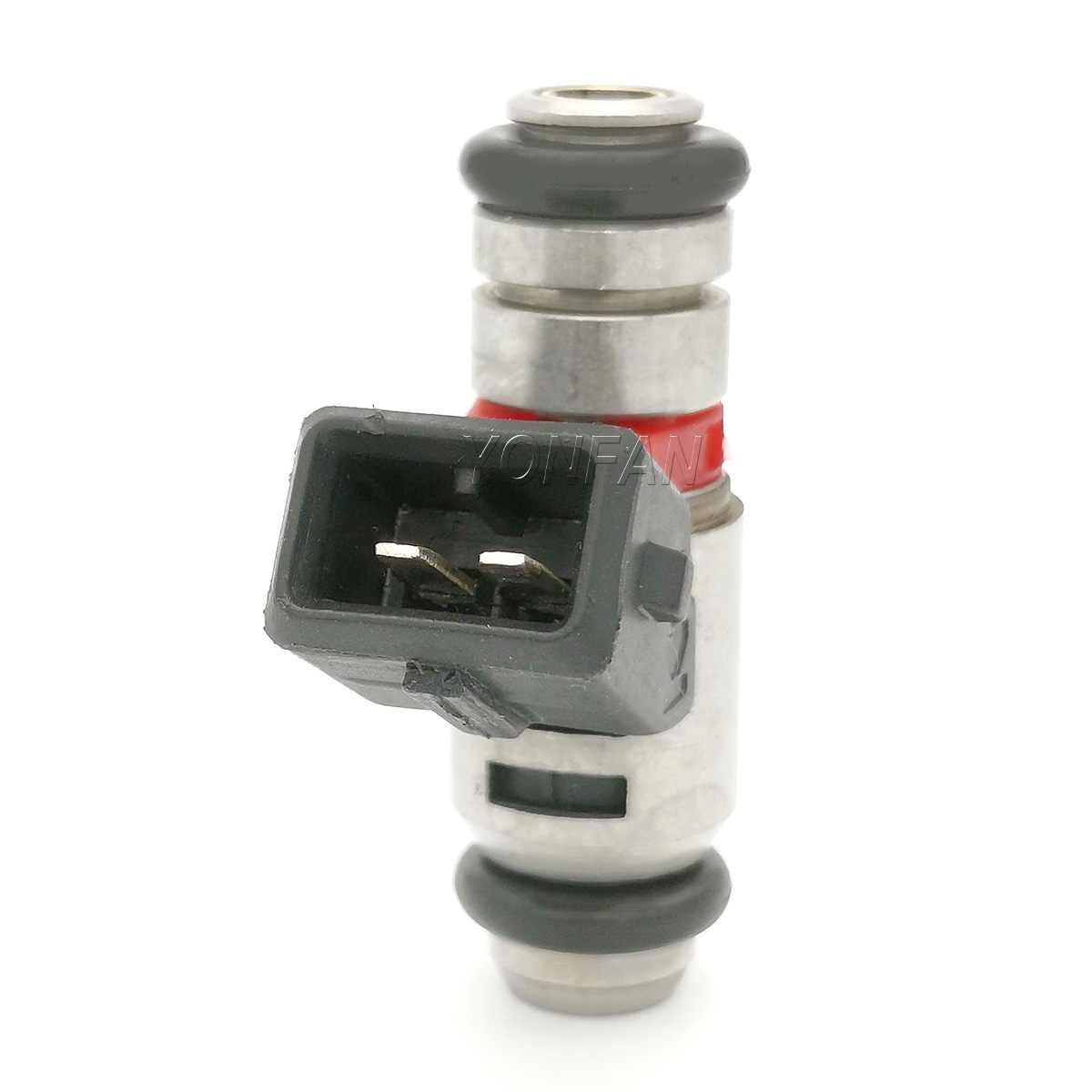

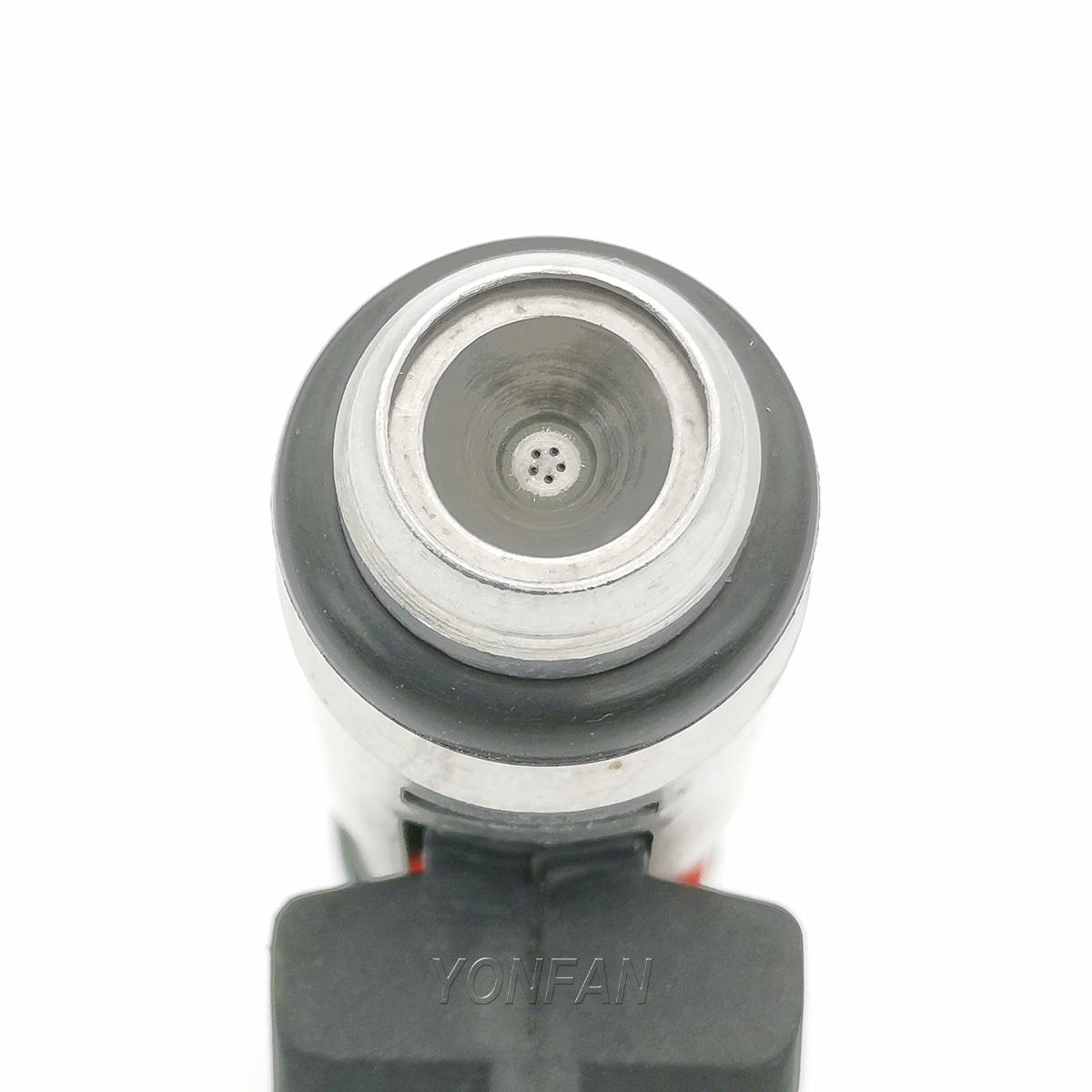

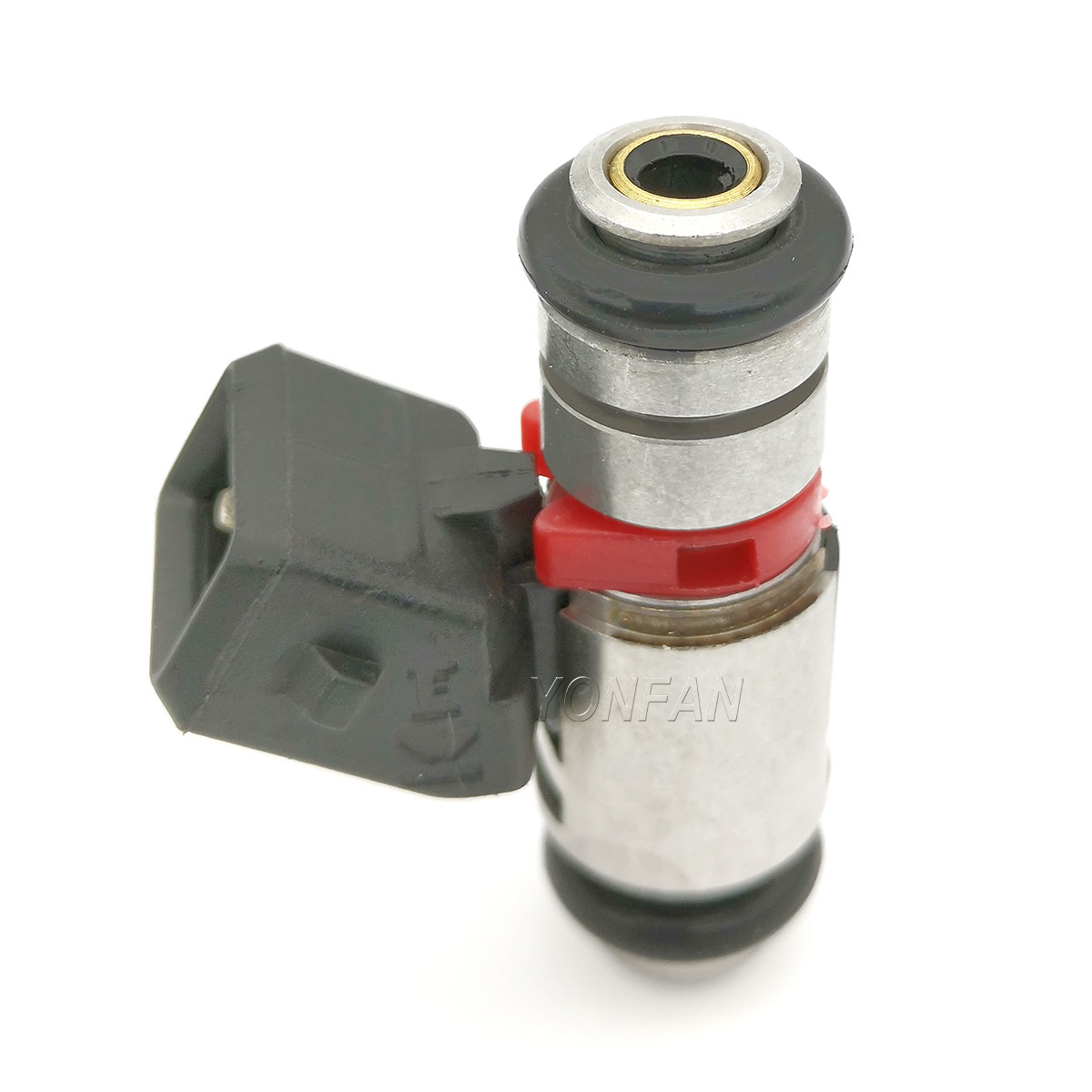

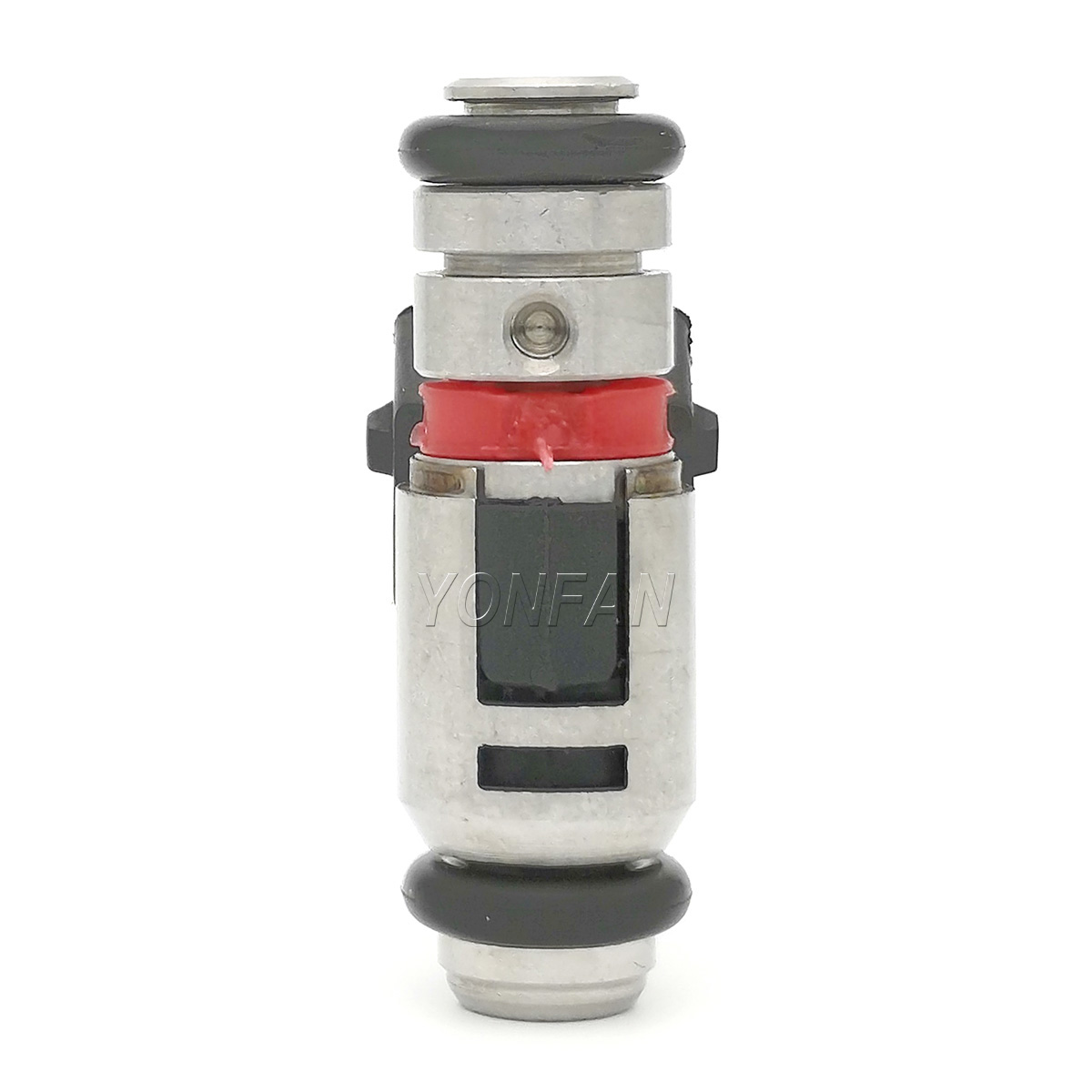

Fuel Injector

  • AE8Z-9G444-B
  • AE8Z-9G444-B
  • AE8Z-9G444-B
  • AE8Z-9G444-B
  • AE8Z-9G444-B
  • AE8Z-9G444-B
IWP048 IWP048 IWP048 IWP048 IWP048 IWP048

IWP048

Model Number: IWP 048

OE Number: 8304275, 8560170, GU3211570, 8000A1440

Application:
Piaggio Beverly X8 X9 X-EVO
Aprilia Atlantic Scarabeo
Gilera Nexus 500
MV Agusta F4 Brutale
Moto Guzzi V7 Breva Nevada

Specification:
Flow: 215cc/min @3Bar
Resistance: 14.5Ω
Operating Voltage: 14V
Operating Temperature: -40°C~+125°C

Inquiry   Email
Part Number:
Magneti Marelli IWP048
Magneti Marelli 805000347203
Moto Guzzi GU3211570
Mv Agusta 8000A1440
Piaggio 8304275
Piaggio 8560170


Application:
Aprilia (R.O 8304275 - AP8560170)
Atlantic 500 2001-2004
Atlantic SP Rinto 400 2005-2008
Atlantic Sprint 500 2005-2008
Scarabeo 500 2003-2006
Scarabeo Light 400 2006-2008
Scarabeo Light 492 2006-2008
Scarabeo Light 500 2006-2008
Gilera (R.O 8304275)
Nexus 500 2004
Nexus (EURO 3) 500 2007-2014
Nexus SP (EURO 3) 500 2006-2007
Piaggio (R.O 8304275)
Beverly (BV500) 500 2008
Beverly (EURO 3) 500 2006-2008
Beverly 500 2004 2004-2005
Beverly IE (EURO3) 400 2006-2012
X EVO (EURO 3) 400 2007-2011
X8 IE (EURO 3) (UK) 400 2006-2008
X9 500 2001-2008
X9 Evolution (ABS) 500 2007-2009
X9 Evolution 500 2004-2006
Moto Guzzi (GU32115710)
Breva - 750 cc 2003-2009
Nevada - 750 cc 2004-2010
V7 Cafe Classic - 750 cc 2009-2011
V7 Classic - 750 cc 2008-2012
V7 Racer - 750 cc 2010-2011
MV Agusta (MV.8000A1440)
Brutale - 750 cc 2003-2005
F4 - 750 cc 1999-2000
F4 - 750 cc 2001-2003
